Equipments
OUR PRODUCT RANGE
Our Equipments & Instruments
Electromagnetic Flow Meter
Model: UPC5-MAG-110
- Size: 15-3000 mm
- Liner: Rubber / PTFE
- Display: 65k LCD
- Power: 85-265V AC/24VDC
- Output: 4-20mA / Pulse / RS485
- Enclosure: IP67/IP68
Electromagnetic Flow Meter with Telemetric Modem
Model: UPCS-GMAG-110
- Size: 15-3000 mm
- Electrode: SS316/SS316L/Hastelloy/Platinum/Titanium/Tantalum
- Power: 85-265V AC/24VDC
- Output: 4-20mA / Pulse / RS485
- Add-on: GSM/GPRS with data logging

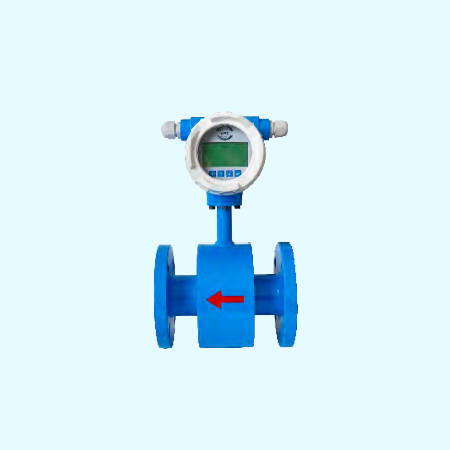

Electromagnetic Flow Meter - Battery Operated
Model: UPCS-BMAG-110
- Size: 15-300 mm
- Liner: Rubber / PTFE
- Display: 128x64 LCD
- Enclosure: Aluminum die-cast IP66
- Battery: Li-ion (ER34615-7600mAH)

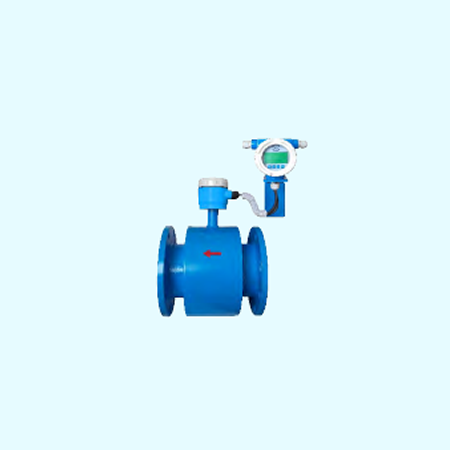

Remote Type Electromagnetic Flow Meter
Model: UPCS-MAG-110
- Size: 15-3000 mm
- Remote transmitter mounting
- Outputs: 4-20mA / Pulse / RS485
- Applications: Raw/Sewage/Process water, conductive liquids

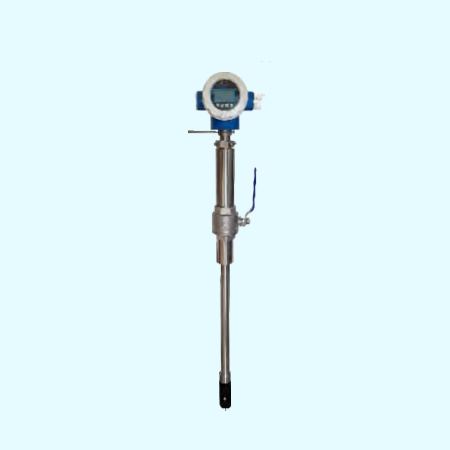

Insertion Type Electromagnetic Flow Meter
Model: UPCI-MAG-113
- Size: 150-3000 mm
- Media Pressure: 15 kg/cm2 max
- Accuracy: ±2% of F.S.
- Velocity Range: 0.1-10 m/s
- Output: 4-20 mA / RS485
- Power: 24V DC
Turbine Flow Meter
Model: UPC-TFM-011
- Type: Inline / Clamp-on Battery Operated
- Viscosity: 20 cP max
- Output: 4-20mA / Pulse / RS485
- Power: 24V DC
- Options: Temperature and Density

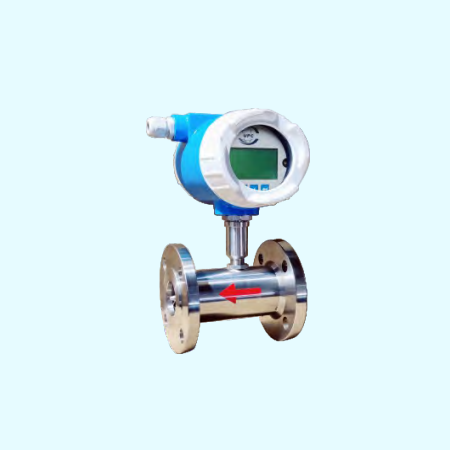

Turbine Flow Meter - Battery Operated
Model: UPC-BTFM-011
- Size: 15-200 mm
- Viscosity: 40 cP max
- Output: RS485
- Response Time: <100 ms
- Coeff. Temp: <0.01%/C
- Battery: Li-ion

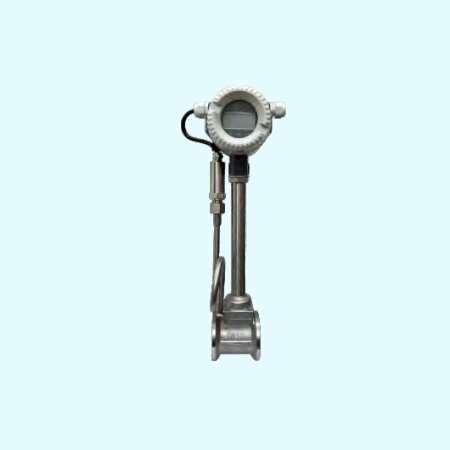

Vortex Flow Meter
Model: UPC-VFM-310
- Size: 15-300 mm
- Max Pressure: 1.6 MPa
- Process Temp: ≤250 C
- Power: 24V DC / 230V AC
- Output: 4-20mA / RS485
- Measure: Volumetric and Temp-Compensated

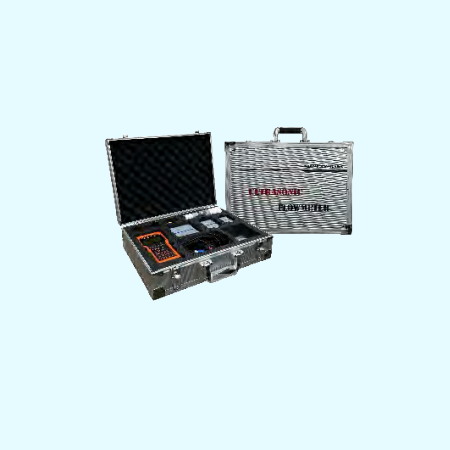

Portable Ultrasonic Flow Meter
Model: UPC-USQ-120
- Size: 15-6000 mm
- Linearity: ±0.5%
- Repeatability: 0.2%
- Accuracy: ±1% (rate >0.2 m/s)
- Display: 4-line backlit
- Power: Rechargeable battery

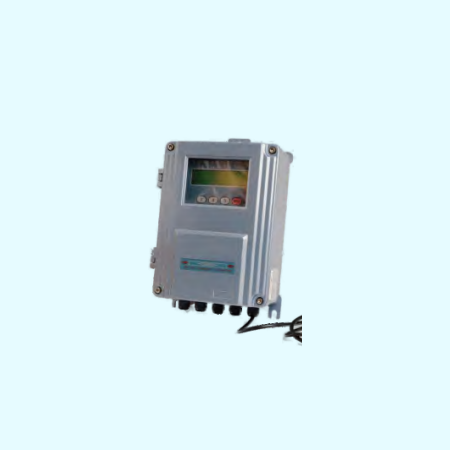

Clamp-On Ultrasonic Flow Meter
Model: UPC-USC-121
- Size: 15-6000 mm
- Transit-time principle
- Accuracy: Better than ±1.0%
- Repeatability: 0.2%
- Power: AC 85-264V
- Temp: -40 C to +90 C

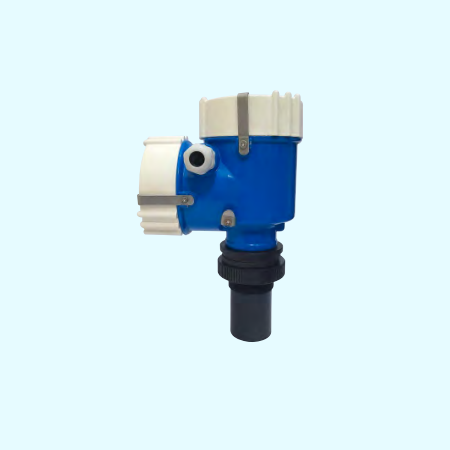

Open Channel Ultrasonic Flow Meter
Model: UPC-UFM-OC-211
- Non-contact ultrasonic
- Flow Range: 0-999999 m3/h
- Cumulative: 0-99999999 m3
- Ambient: -30 C to +70 C
- Power: 90-230V AC
- Range: 5-10 m

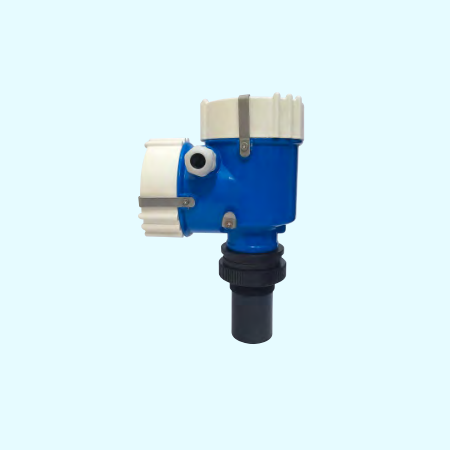

Ultrasonic Level Transmitter
Model: UPC-UT-330
- Non-contact ultrasonic
- Range: 0.5-10/20 m
- Blind Zone: 0.25 m
- Supply: 24V DC
- Output: 4-20 mA
- Precision: 0.5% (typ.)

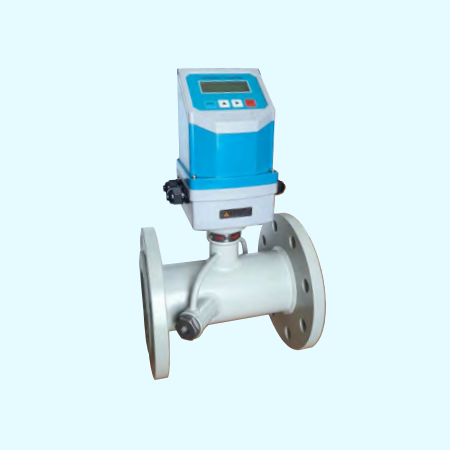

Ultrasonic Flow Meter (Inline)
Model: UPC-UWM-201
- DN40-DN6000
- Supply: 24V DC
- Accuracy: ±(0.5-2%)
- Data Storage: 18 months
- Install: Horizontal or Vertical

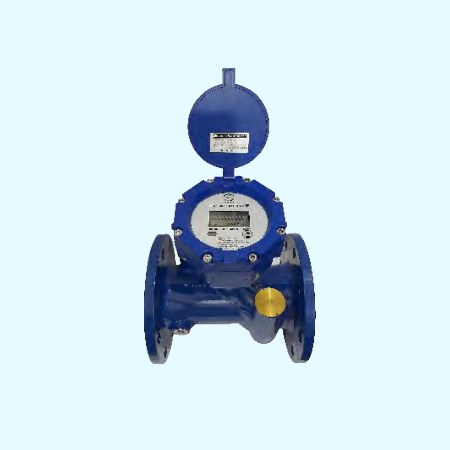

Ultrasonic Water Meter
Model: UWM-Series
- Lithium battery powered
- Protection: IP68
- Q ranges: Q3/Q1=80/40/16/10
- Install: Horizontal or Vertical
- Working Temp: ≤55 C

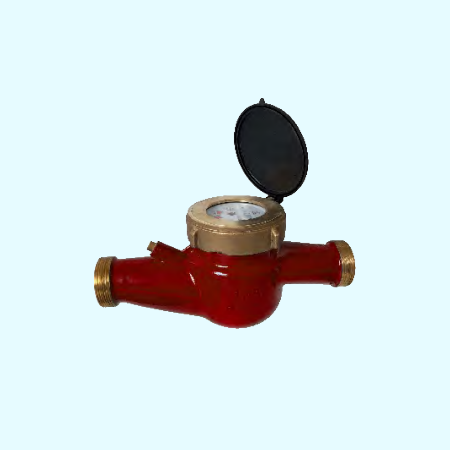

Multijet Water Meter - HOT
Model: UPC-MJTH-112
- Size: 15-50 mm
- Standard: ISO 4064/IS 779
- Temp: up to 90 C
- Class: B
- Low pressure loss, long life

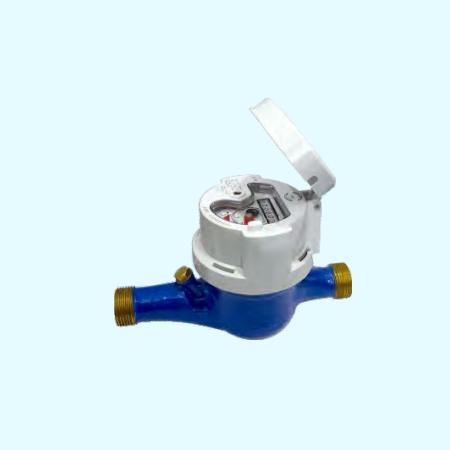

Multijet Water Meter - COLD
Model: UPC-MJTC-112
- Size: 15-50 mm
- Standard: ISO 4064/IS 779
- Temp: <50 C
- Class: B
- Low pressure loss, long life

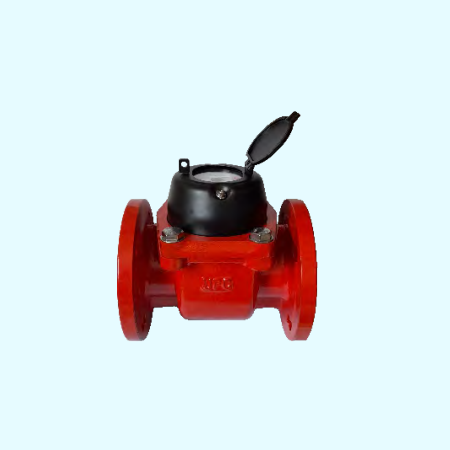

Woltman Type Water Meter - HOT
Model: UPC-WMH-110
- Size: 40-400 mm
- Temp: up to 90 C
- Class: B
- Magnetic drive
- Register rotates 360 degrees
- Dry dial

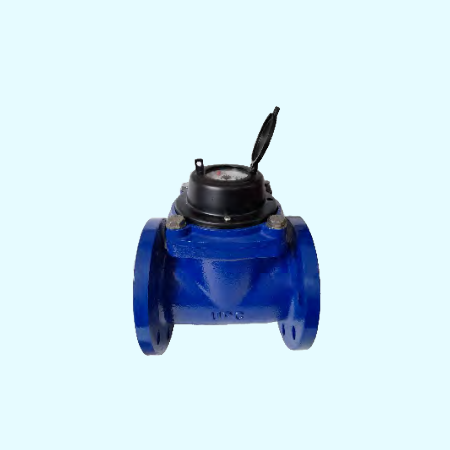

Woltman Type Water Meter - COLD
Model: UPC-WMC-110
- Size: 40-400 mm
- Temp: <50 C
- Class: B
- Low pressure loss
- Magnetic drive
- Dry dial

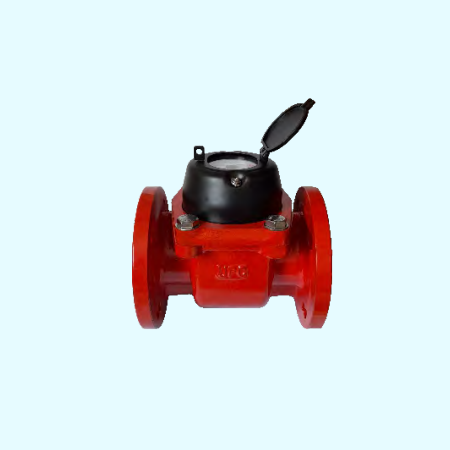

Woltman Type Water Meter - SUPER HOT
Model: UPC-WMSH-110
- Size: 40-400 mm
- Temp: up to 130 C
- Class: B
- Magnetic drive
- Long working life
- Dry dial

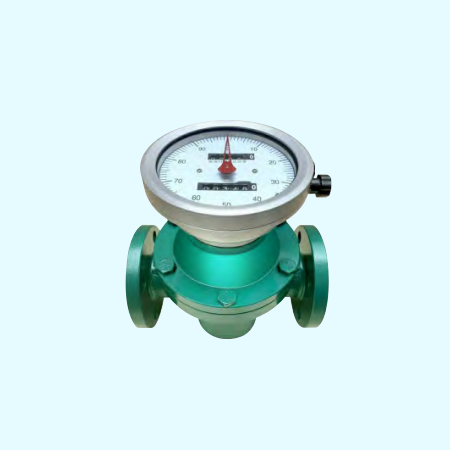

Oval Gear Flow Meter
Model: OFM-124
- Nominal DN: DN25-DN80
- Accuracy: ±0.2%
- Viscosity: 2-200 mPa·s
- Display: Rate and Totalizer with reset

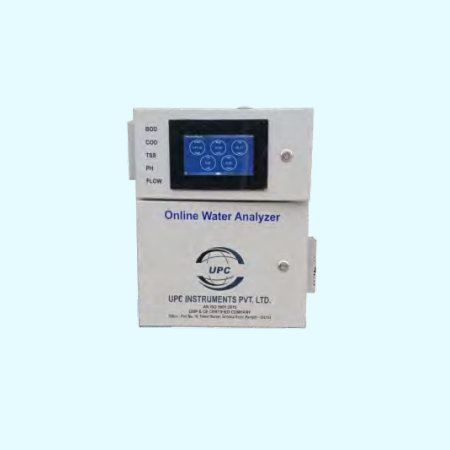

Online Water Analyzer
Model: UPC-WA-202
- UV-Visible spectroscopy
- 5.7 inch LCD Touch
- Outputs: 4-20mA / RS485
- Params: COD/BOD/TSS/pH
- Enclosure: IP65

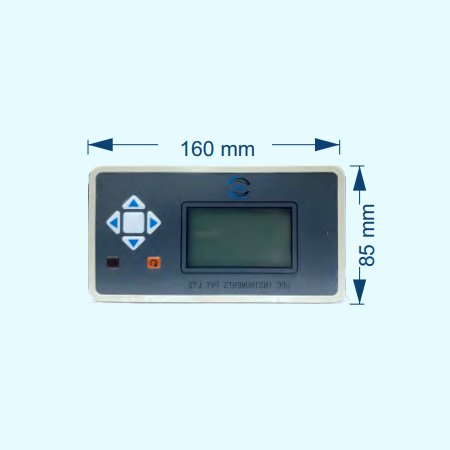

Flow Totalizer Indicator / Batch Controller
Model: UPC-FTC-114
- 160 mm panel mount
- Supply: 230V AC / 24V DC
- Inputs: 4-20mA / Pulse / RS485
- Programmable
- Selectable engineering units

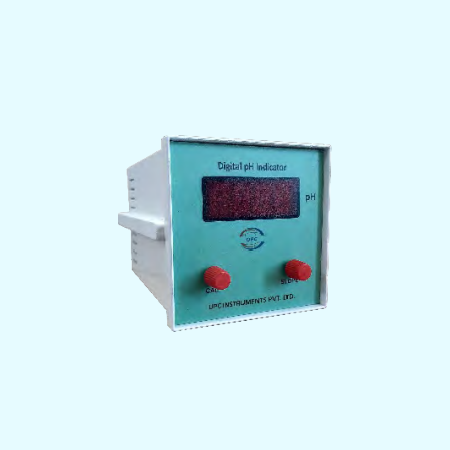

pH Meter
Model: UPC-PHM-203
- Range: 0-14 pH
- Resolution: 0.01 pH
- Accuracy: ±0.01 pH
- Output: 4-20 mA
- Supply: 230V AC
- Two-point calibration

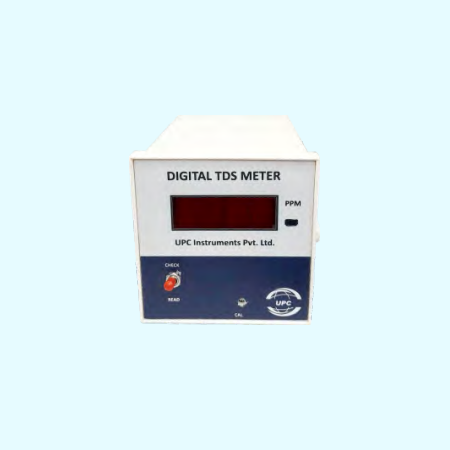

TDS Meter
Model: UPC-TDM-204
- Range: 0-20000 ppm
- Display: 3-digit LED
- Supply: 230V AC / 110V AC
- Mounting: Panel / Field

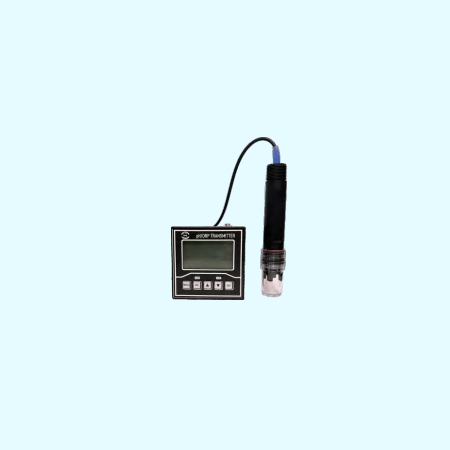

pH/ORP Transmitter
Model: PH-501
- pH: 0-14, ORP: -2000~+2000 mV
- Accuracy: ±0.02 pH / ±1 mV
- Temp Accuracy: ±0.5 C
- Output: RS485 / 4-20 mA
- Supply: 220V AC

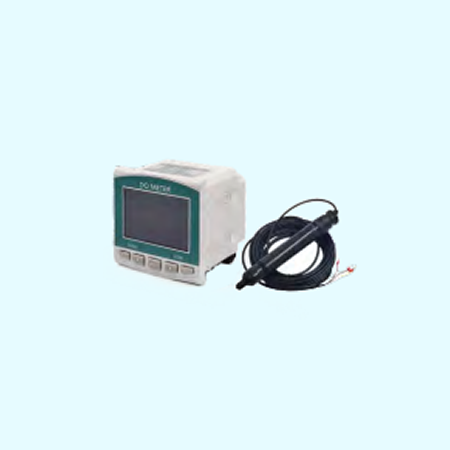

DO Meter
Model: DO-130
- Display: 3-digit LED
- Range: 0-20 ppm
- Accuracy: ±0.2 ppm ±1 digit
- Sensor: Galvanic / Silver membrane
- Supply: 230V AC 50Hz

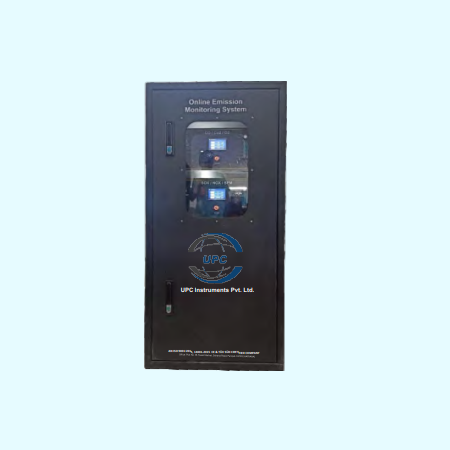

Continuous Emission Monitoring System
Model: UPC-CEMS-207
- Measures: SPM, SOx, NOx, CO, CO2, O2
- Ranges: e.g., SOx 0-5000 ppm
- Connectivity: Cloud

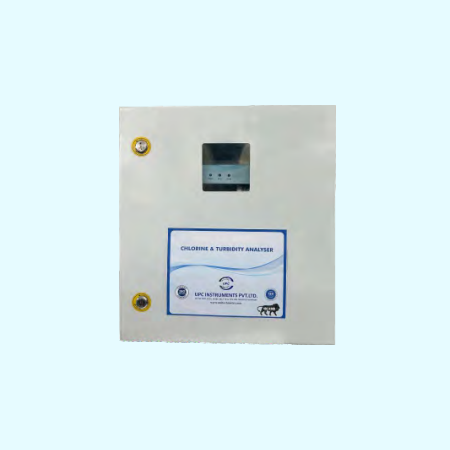

Chlorine & Turbidity Analyzer
Model: UPC-CTM-215
- Online constant-voltage chlorine
- Range: 0-20 ppm; 0-1000 NTU
- Max Pressure: 8 bar
- Output: RS485

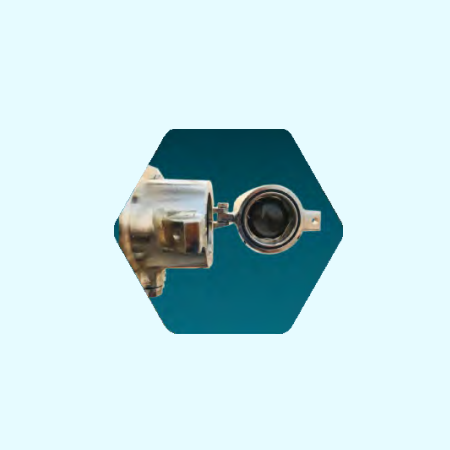

Online SPM Analyzer
Model: SPM-205
- Transmittance measurement
- Range: 0-1000 mg/Nm3
- Process Temp: -40 to +600 C
- Output: 4-20mA
- Duct diameter: 2.5 cm-1.2 m

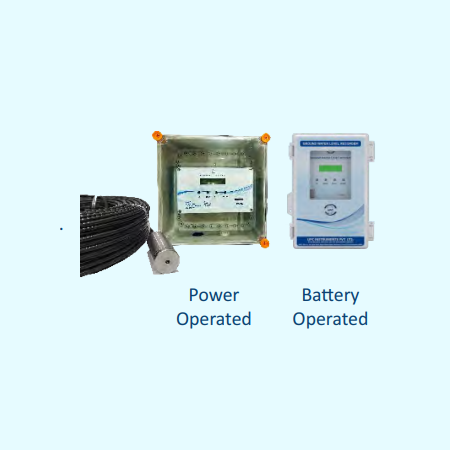

Ground Water Level Recorder / Piezometer
Model: UPC-GWM-20
- Accuracy: 0.25% F.S.
- Power: 16V DC, 1.5A MP Adapter
- Probe: 17-4PH/316L SS
- Enclosure: IP65
- Output: Excel format; real-time clock
